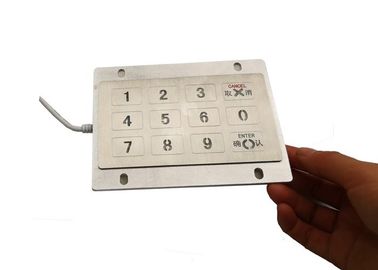

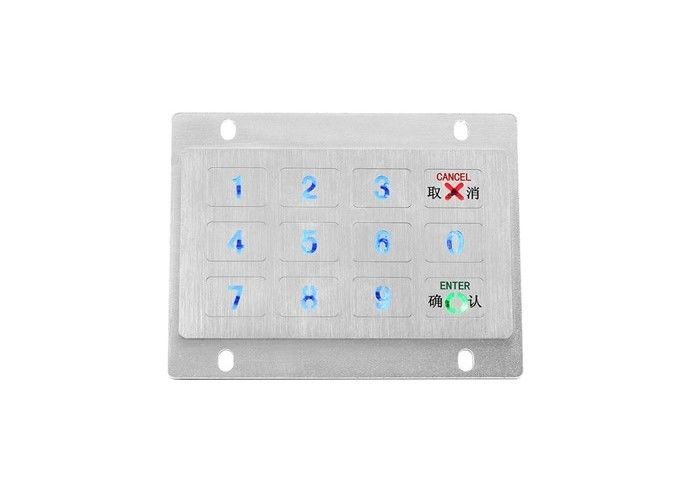

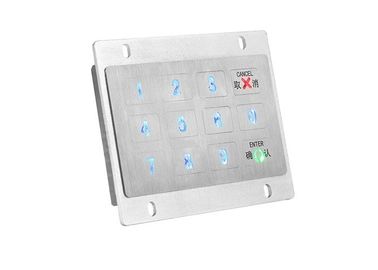

Digital Metal Keypad Vandal Proof Lightweight With 4 X 3 Backlight Touch Keys

Panel Mount Metal Digital Keypad With 4 x 3 Backlight Touch Keys

Metal Keypad Application:
Widely used in ATM, self-service terminal,info-kiosk access, commercial kiosk.

Special Features:
1. Specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

2. This keypad with willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.

Stainless Steel Keypad​ Main Features:

• 4 x 3 12 keys panel mounted IP65 stainless steel touchable metal keypad
• Vandal proof keypad with short key stroke of 0.45mm
• Numeric keypad with functional keys

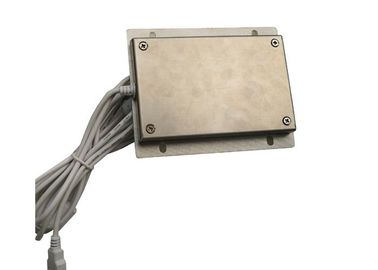

• Rear panel mount
• Interface: USB,PS/2,RS232
• With professional industrial carbon on gold
• Weatherproof, corrosion resistance, Aging resistance
• Double-sided for printed circuit board
• Chemical gold plated and reliable contact
• Power Supply: DC5V±5%
• Working Current: <100mA
• Switch life: more than 10 million of operations
• Operating temperature:-30℃ ~+70℃
• Storage temperature: -40℃ ～ +80 ℃
• Front panel is with IP65 protection
• Front Panel Dimension: 120x74 mm
• Overall size: 126*104 mm
• Gross Weight: 0.5kg
• The application for this keypad is mainly for kiosk, control terminal, petrol station, parking system, other industrial fields

Metal Keypad Advantages:

• Our vandalism proof metal / stainless steel keypad is the ideal for the industrial applications.
• We have the full range of the metal keypad, by material, by size, by keys, by applications, by mount solution.
• Generally, 12 keys, 16 keys, 24 keys; stainless steel or zinc alloy, front panel mount, rear panel mount or the desk top
• Long key stroke of 2.0mm or the short key stroke of 0.45mm
• The professional bank PCI keypad is aslo available
• It is flexible to laser different language layout on the metal keypad to support global market.
• Durable quaility for less after sale problems
• The customs OEM / ODM keypad is also welcomed.
• We can make the metal keypad delivery on due time

Metal Keypad Layout Options:

Metal Keypad FAQs:

Q1. Why the metal keypad for the professional applications?

The traditional plastic keyboard goes dirty very easily, and is not rugged enough for the industrial app.

The metal keypad is vandal proof, dust proof.

Q2. Where to buy the ametal keypad?

Please email or call us with your detailed request, and then we will make the professional suggestions.

Customers can buy directly from us or from our distributors.

Q3. How to make the metal keypad delivery?

For the small quantity metal keypad, usually delivery by express courier like DHL, UPS, TNT, FedEx

For the big quantity metal keypad, usually by LCL sea shipping or air shipping.

Q4. What is the warranty for the metal keypad?

Standard 1-year, but the metal keypad warranty can be exteneded with extra cost.

Q5. Is it possible to make the customs metal keypad size?

Yes, it is possible, please email us your detailed metal keypad request.

Q6. Is it possible to print the customs's company information/logo/part number/SN?

Yes, it is no problem, but based on MOQ.
