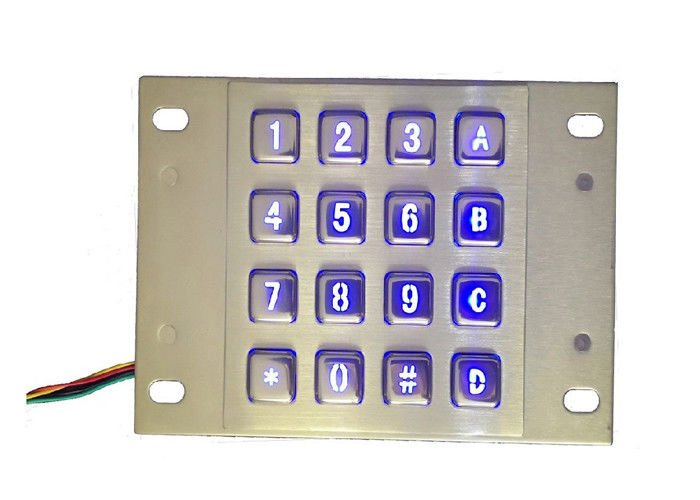

PS2 150mA Panel Mount Illuminated Keypad 16 Matrix Metallic

PS2 150mA Panel Mount Illuminated Keypad 16 Matrix Metallic
PS2 150mA Panel Mount Illuminated Keypad 16 Matrix Metallic PS2 150mA Panel Mount Illuminated Keypad 16 Matrix Metallic

Large Image :  PS2 150mA Panel Mount Illuminated Keypad 16 Matrix Metallic

Product Details:

Place of Origin: Made in China
Brand Name: PAC
Certification: CE, FCC, ROHS
Model Number: P-16BL

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Inner box plus outer carton
Delivery Time: 1-2 weeks
Payment Terms: TT, PayPal, Western Union
Supply Ability: 3000pcs per month
Detailed Product Description
Illuminated: Blue Interface: USB, PS/2, RS232 Or Matrix
Solution: Panel Mount Keys: 16
Matrix Keypad: Available Material: Metallic
High Light:

PS2 Panel Mount Illuminated Keypad


150mA Panel Mount Illuminated Keypad


16 Matrix Metallic Illuminated Keyboard

Illuminated Usb Panel Mount Keypad With 16 Matrix Metallic Keys


Panel Mount Keyboard Features:

  • IP65 industrial stainless steel metal keypad with numbers and function keys
  • 16 keys vandal proof industrial keyboard with rear panel mounting
  • Each keys can be customs layout
  • Blue backlit keypad with USB or PS/2 or RS232 cable
  • Vandal proof keypad with long key stroke

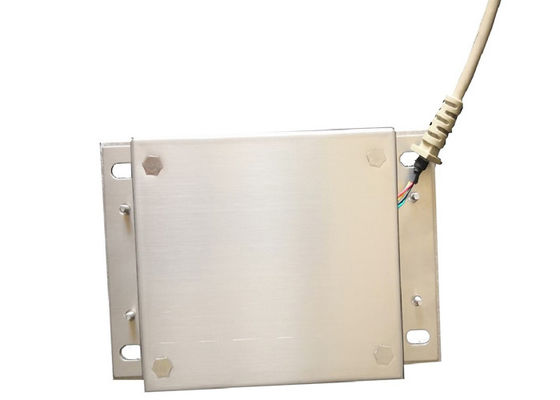

  • The industrial metal keypad is with rear panel mounting
  • Front panel mount with threaded studs optional
  • With professional industrial carbon on gold
  • Weatherproof, corrosion resistance, Aging resistance
  • Double-sided for printed circuit board
  • Chemical gold plated and reliable contact
  • Voltage: 5V
  • Switch life: more than 3 million of operations
  • Operating temperature: -30℃ ~+70℃
  • Storage temperature: -40℃ ~ +80 ℃
  • Front panel is with IP65 protection
  • Front panel size: 100*196 mm (front panel)
  • Gross Weight: 1kg
  • The water proof, vandal proof panel mount keyboard is with CE, FCC, ROHS certified


Metal Keypad Advantages:

  • Our vandalism proof metal / stainless steel keypad is the ideal for the industrial applications.
  • We have the full range of the metal keypad, by material, by size, by keys, by applications, by mount solution.
  • Generally, 12 keys, 16 keys, 24 keys; stainless steel or zinc alloy, front panel mount, rear panel mount or the desk top
  • Long key stroke of 2.0mm or the short key stroke of 0.45mm
  • The professional bank PCI keypad is aslo available
  • It is flexible to laser different language layout on the metal keypad to support global market.
  • Durable quaility for less after sale problems
  • The customs OEM / ODM keypad is also welcomed.
  • We can make the metal keypad delivery on due time
  • The durable rugged stainless steel panle mount keyboard is for wide industrial applications like:
  • kiosk, control terminal, petrol station, parking system, other industrial fields


Industrial Keypad Spec:

Buttons: 16 keys
Power supply: DC5V±5%
Working curren: <150mA
Interface: PS2 or USB or RS232
Key size: 14*14*4.5mm, 14*100*4.5mm
Key stroke: 1.5mm
Operation force: 0.8N
Front panel:  100 x 196 mm
Mounting solution: rear panel mount or rear panel mount or personalization
Compatible with systems: All Windows, Linux, Ubuntu, Android
Mouse: optical metal trackball optional


Stainless Steel Keypad FAQs:

Q1. Is it possible to label the customs's company information/logo/part number/SN?

Yes, it is no problem, we can make the personalization for customers.


Q2. Why the metal keypad for the professional applications?

The traditional plastic keyboard goes dirty very easily, and is not rugged enough for the industrial app.

The metal keypad is vandal proof, dust proof.


Q3. Where to buy the industrial keypad?

Please email or call us with your detailed request, and then we will make the professional suggestions.

Customers can buy directly from us or from our distributors.


Q4. How to make the industrial keypad delivery?

For the small quantity metal keypad, usually delivery by express courier like DHL, UPS, TNT, FedEx

For the big quantity metal keypad, usually by LCL sea shipping or air shipping.


Q5. What is the warranty for the industrial keypad?

Standard 1-year, but the metal keypad warranty can be exteneded with extra cost.


Q6. Is it possible to make the customs metal keypad size?

Yes, it is possible, please email us your detailed metal keypad request.
