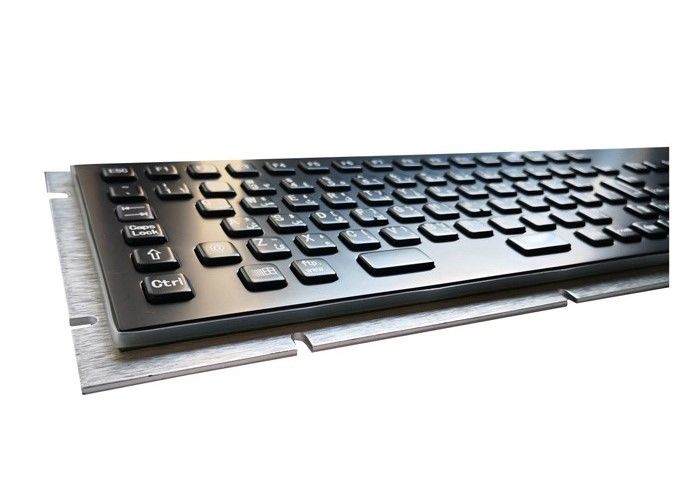

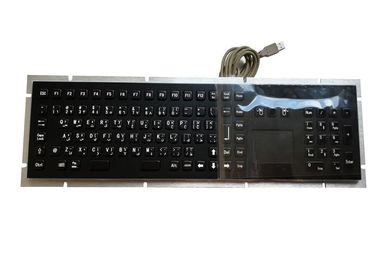

Sealed Touchpad Wireless Compact Mechanical Keyboard For Marine Control

Compact Black Stainless Steel Keyboard For Marine Control By Sealed Touchpad

Black Metal Keyboard Main Features:

• 107 keys compact format vandal proof black stainless steel industrial keyboard
• With sealed touchpad mouse
• With extremely good tactile feeling for fast and accurate data input without any noise
• Rear panel mount solution
• Switch life: more than 5 million of operations
• Actuation Force: <1N
• OS: All windows, Linux, Unix, Mac OSX
• Language: All the languages compatible with Windows
• Communication: USB or PS2 interface, plug and play, with external power supply
• No external power supply necessary, keyboardport power sufficient
• Supply Voltage: +5V DC +/-5%
• Current Rating: appr. 20mA
• Compact thickness
• Protection Level: IP65(front panel)
• Vandal resistant IK09
• MTBF >50000H
• MTTR <30min
• Dimension: 400.0mm x 124.0mm (front panel) (drawing download: P-F478TP (BT) drawing.pdf)
• Weight: 2.5kg
• CE, FCC, ROHS
• P-F478TP-BT data sheet download: P-F478TP-BT data sheet.pdf

Optinal Trackball Features:

• Removable panel mount 38mm quadrature optical trackball mouse module for fast and accurate movment
• Black color or stainless steel
• The trackball is approval with CE, FCC, ROHS standards.
• Other diameter balls, like 50.mm or 25.mm is available
• The mechanical trackball and the laser trackball is optional
• Carrier plate: Brushed stainless steel
• Ball material: heavy stainless steel ball or light harden resin ball
• Push button switches use gold plated contact material
• Interface: USB, PS2, or quadrature
• No external power supply necessary, keyboardport power sufficient

Optinal Trackball Data Sheet:


Marine Keyboard FAQs:
Q1. Where to buy the industrial marine keyboard?
Please email or call us with your detailed request, and then we will make the professional suggestions.
Customers can buy directly from us or from our distributors.

Q2. How to make the marine keyboard delivery?
For the small quantity trackballs, usually delivery by express courier like DHL, UPS, FedEx with door-to-door service
For the big quantity trackballs, usually by LCL sea shipping or air shipping.

Q3. What is the warranty for the marine keyboard?
Standard 1-year, but the trackball warranty can be exteneded with extra cost.

Q4. Is it possible to make the customs marine keyboard size?
Yes, it is possible, please email us your detailed trackball request.

Q5. What is the term of the quotation please?
Our quotation is standard by EXW.
We can help our customers to arrange the shipping with prepaid shipping.
Alternatively the customers can aslo use their own express count or their appointed shipping agent for freight collect.

Q6. What is the lead-time for the marine keyboard?
The lead-time is as soon as possible 1 week for the small quantity under 10 units.
Sometimes we have the small stock for the samples.
The lead-time is as soon as possible 2 weeks for the quantity around 50 units.
