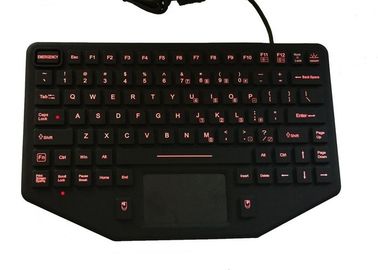

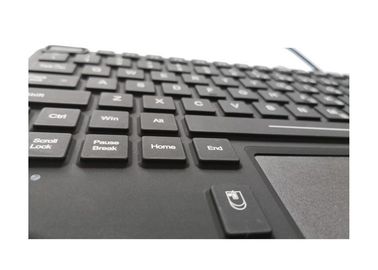

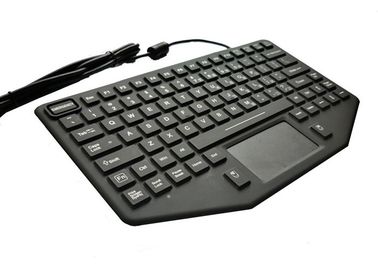

Vehicle Panel Mount Keyboard With Touch Mouse / Red Illumination Waterproof

Vehicle Panel Mount Keyboard With Touch Mouse / Red Illumination Waterproof
Vehicle Panel Mount Keyboard With Touch Mouse / Red Illumination Waterproof

Large Image :  Vehicle Panel Mount Keyboard With Touch Mouse / Red Illumination Waterproof

Product Details:

Place of Origin: Made in China
Brand Name: PAC
Certification: CE, FCC, ROHS, WEEE, IC
Model Number: P-M283TP-BL

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Inner box plus outer carton
Delivery Time: 1-2 weeks
Payment Terms: TT, PayPal, Western Union
Supply Ability: 3000pcs per month
Detailed Product Description
Mount: Panel Mount Vehicle Keyboard: Yes
Material: Silicone Rubber LED: Green
Illumination: Red Emergency Key: Shift+F1
Touchpad: Built-in EMI Keyboard: Yes
High Light:

industrial computer keyboard


industrial membrane keyboard

IP65 EMI Panel Mount Vehicle Keyboard With Touch Mouse and Red Illumination


Quick Details for Panel Mount Vehicle Keyboard:

  • With sealed touchpad mouse
  • With coiled USB cable
  • With rugged silicone rear cover to protect the PCB
  • With hot key of Emergency Key
  • Supporting portable PC or the portable ABS housing on vehicle


Portable PC Keyboard Main Features:
1. IP65 dynamic sealed and ruggedized industrial, military silicone rubber hygienic keyboard with touchad,

2. with “Emergency” key for Shift+F1 ,

3. With 5sec lock button to lock and unlock the keyboard for easy cleaning without disconnecting from PC,

4. front panel mounting keyboard for industrial/military PC applications
5. With red backlight included, the backlight can be on/off

6. Backlight brightness in 4 levels
7. Easy clean, no gap between keys
8. Rubberized surface provides comfortable use of typing of noise-free
9. With 89keys, with sealed touchpad included
10. Language: All the languages compatible with Windows
11. Communication: USB interface
12. Dimension: 282.18 x 176.67mm
13. Thickness: 18mm with the rear silicone cover, 10mm without the rear silicone cover
14. Net Weight: 618g
15. Operating temperature: -40℃ ~+60℃
16. Storage temperature: -50℃~ +70 ℃

17. CE, FCC, ROHS, WEEE, IC certs fort global market, especially for the strict European and American standards



Keyboard Backlighting: Red LED, 4-level dimming
Electrical Life: 5 million actuations
Power Consumption:  < 500 mA @ 5V
Contact Resistance: < 2K ohm
Insulation Resistance: > 100M ohm @250 V DC
Indicator: Green LED on Cap Lock, Num Lock, and Scroll Lock
"Emergency” Key: Output “Shift+F1” key code
Computer Systems: All Windows, Linux, Chinese system
Vibration: 15 G peak, 150 to 2000 Hz, 3-axis. MIL-STD-810F, Method 514.5


Panl Mount Touch Keyboard Applications:

This waterproof, dust proof, oil proof panel mount silicone keyboard with mouse is for

  • military outdoor pc application
  • Vehicle keyboard application
  • portable pc for medical
  • fishing boat
  • industrial pc
  • other industrial fields

Panel Mount Vehicle Kyeboard RFQs:

Q1. How to buy the metal keyboard samples?

Welcome to contact us directly even for the sample.

Or we can also recommend our distributor to you.


Q2.How to mount the panel-mount keyboard?

Usually glue the keyboard sides, and top panel mounting.


Q3. What is the warranty?

The standard warrranty for the metal keyboard is 1 year.


Q4. What is the after sale service for the faulty keyboard?

Usually there is very little faulty rate for our metal keyboard.

If there is any, we will provide the free PCB/buttons for your easy replacement for the faulty ones.


Q5. How can I receive the keyboards?

The keyboards / mice are usually delivered by express courier with door-to-door service.
