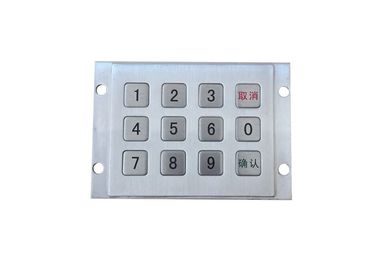

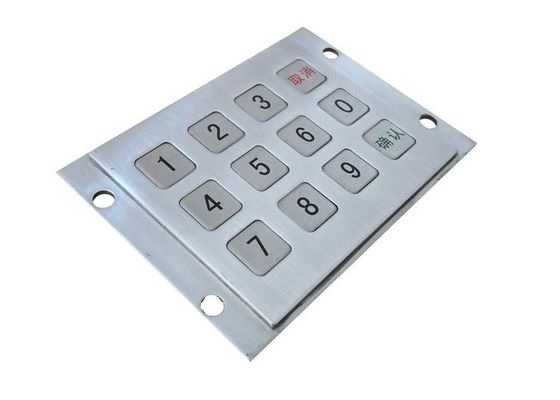

Weatherproof Horizontal 4 X 3 Keypad , Flat 12 Button Front Door Keypad

Weatherproof Horizontal 4 X 3 Keypad , Flat 12 Button Front Door Keypad
Weatherproof Horizontal 4 X 3 Keypad , Flat 12 Button Front Door Keypad Weatherproof Horizontal 4 X 3 Keypad , Flat 12 Button Front Door Keypad Weatherproof Horizontal 4 X 3 Keypad , Flat 12 Button Front Door Keypad

Large Image :  Weatherproof Horizontal 4 X 3 Keypad , Flat 12 Button Front Door Keypad

Product Details:

Place of Origin: Made in China
Brand Name: PAC
Certification: CE, FCC, ROHS
Model Number: P-70KP-HR

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Inner box plus outer carton
Delivery Time: 1-2 weeks
Payment Terms: TT, PayPal, Western Union
Supply Ability: 3000pcs per month
Detailed Product Description
Button: 4 X 3 Horizontal: Yes
Interface: USB, RS232, PS2 Layout: Flat
Material: Metal Door Keypad: Yes
High Light:

atm number pad

,

door lock keypad

Horizontal 4 x 3 Metal Industrial Door Keypad With Flat 12 Button To Be Slim



Industrial Keypad Special Features:
1. This metal keypad surface wire drawing process, more wear resistance
2. Key by laser engraving or chemical anti-falling off
3. Special water proof design,IP65 protect level,it has good performance of water proof,dust proof and vandal-proof,which make it a good choice for public use or harsh environment
4. To guarantee the mechanical stability
5. Simple installation,easy maintenance and national service
6. Keys are good touch feeling and accurate date input without any noise
7. Font and pattern can be customized according to customer requirements
8. Very strict ex-factory inspection standards



Stainless Steel Keypad​ Main Features:

  • IP65 flat 4x3 12 keys top panel mounted IP65 stainless steel metal keypad
  • Non-backlight version
  • Vandal proof keypad with skort key trip of 0.45mm
  • Rear panel mount solution
  • With professional industrial carbon on gold
  • Weatherproof, corrosion resistance, Aging resistance

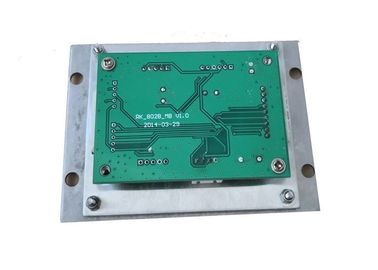

  • Double-sided for printed circuit board
  • Chemical gold plated and reliable contact
  • Voltage: 5V
  • Switch life: more than 3 million of operations
  • 14x14mm for the key size
  • Operating temperature: -30℃ ~+70℃
  • Storage temperature: -40℃ ~ +80 ℃
  • Front panel is with IP65 protection
  • Gross Weight: 0.5kg
  • Mainly for kiosk, bank machine, control terminal, petrol station, parking system, other industrial fields



Metal Keypad Advantages:

  • Our vandalism proof metal / stainless steel keypad is the ideal for the industrial applications.
  • We have the full range of the metal keypad, by material, by size, by keys, by applications, by mount solution.
  • Generally, 12 keys, 16 keys, 24 keys; stainless steel or zinc alloy, front panel mount, rear panel mount or the desk top
  • Long key stroke of 2.0mm or the short key stroke of 0.45mm
  • The professional bank PCI keypad is aslo available
  • It is flexible to laser different language layout on the metal keypad to support global market.
  • Durable quaility for less after sale problems
  • The personalized eypad is also welcomed.
  • We can make the metal keypad delivery on due time



Flat Metal Keypad Spec:

Keys: 20keys
Power supply: DC5V±5%
Working curren: <150mA
Interface: PS2/USB/RS232/matrix
Key size: 14*14mm
Key trip: 0.45mm
Operation force: 2N
Front panel:  can be personalization
Overall: can be personalization
Mounting solution: rear panel mount or rear panel mount or personalization
Compatible with systems: All Windows, Linux, Ubuntu, Android




Metal Keypad FAQs:

Q1. Is it possible to label the customs's company information/logo/part number/SN?

Yes, it is no problem, we can make the personalization for customers.



Q2. Why the metal numeric keypad for the professional applications?

The traditional plastic keyboard goes dirty very easily, and is not rugged enough for the industrial app.

The metal keypad is vandal proof, dust proof.



Q3. Where to buy the metal numeric keypad?

Please email or call us with your detailed request, and then we will make the professional suggestions.

Customers can buy directly from us or from our distributors.



Q4. How to make the metal keypad delivery?

For the small quantity metal keypad, usually delivery by express courier like DHL, UPS, TNT, FedEx

For the big quantity metal keypad, usually by LCL sea shipping or air shipping.



Q5. What is the warranty for the metal keypad?

Standard 1-year, but the metal keypad warranty can be exteneded with extra cost.



Q6. Is it possible to make the customs metal keypad size?

Yes, it is possible, please email us your detailed metal keypad request.
