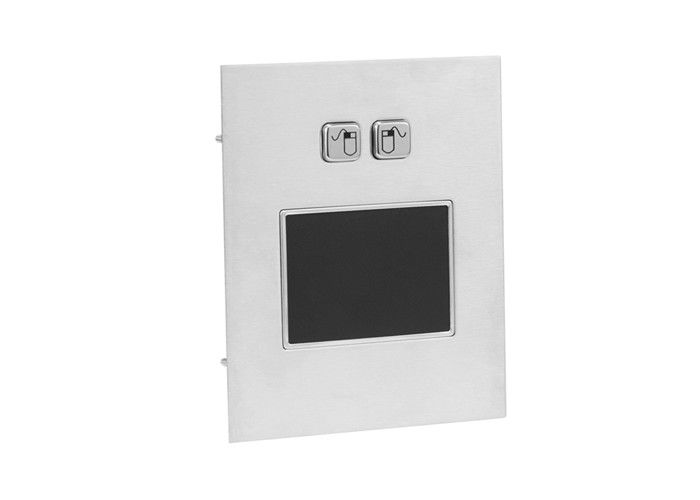

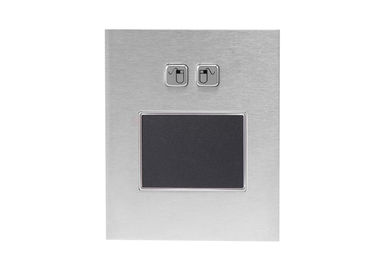

Front Mount Usb Touchpad Mouse , Touchpad Screen Computer Pointing Device For Kiosk

Certification
China Shenzhen PAC Technology Co., Ltd certification
China Shenzhen PAC Technology Co., Ltd certification
I got the keyboards. We are very pleased with quality from PAC TECHNOLOGY CO., LTD. They are made perfectly. We will order more.

—— Juan

It is the right choice to buy your professional keyboards! Thank you!

—— Marks

The trackballs have been received last week, and we have tested them. The result is positive. The trackballs fit our project perfectly! You are on our supplier list and we will buy more soon.

—— Carol

Thanks for your patience in communication, it is really nice working with you.

—— Lee

I'm Online Chat Now

Front Mount Usb Touchpad Mouse , Touchpad Screen Computer Pointing Device For Kiosk

Front Mount Usb Touchpad Mouse , Touchpad Screen Computer Pointing Device For Kiosk
Front Mount Usb Touchpad Mouse , Touchpad Screen Computer Pointing Device For Kiosk Front Mount Usb Touchpad Mouse , Touchpad Screen Computer Pointing Device For Kiosk

Large Image :  Front Mount Usb Touchpad Mouse , Touchpad Screen Computer Pointing Device For Kiosk

Product Details:

Place of Origin: Made in China
Brand Name: PAC
Certification: CE, FCC, ROHS
Model Number: P-107TP

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Inner box plus outer carton
Delivery Time: 1-2 weeks
Payment Terms: TT, PayPal, Western Union
Supply Ability: 3000pcs per month
Detailed Product Description
Mount: Front Panel Mount USB: Yes
Trackball: Optional Mouse: Touchpad
Material: Stainless Steel Application: Industrial Kiosk
High Light:

computer pointing device

,

usb touchpad mouse

Panel Mount USB Touchpad Mouse Pointing Device With Screen For Kiosk



Touchpad Pointing Device Description:

IP67 dynamic Sealed and Ruggedized Tough Touchpad for fast and accurate cursor position, with 2 raised IP65 dynamic sealed stainless steel mouse buttons under touchpad, the electronics controller module shielded and protected with stainless steel housing, with mounting holes along the rear panel mounting aluminum plate for rear panel mounting.one complete silicone rubber alone the rear stainless steel plate for easy mounting & sealing tightly with cabinet.

Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.



Rugged Touchpad Features:

  • Vandal proof stainless steel panel mount touchpad pointing device
  • IP65 water proof, dust proof for industrial application
  • Front panel mounting solution with threaded studs
  • With 2 raised buttons, 2.0mm key distance travel
  • With above 800DPI
  • Front Panel: 304 stainless steel
  • Keys: 304 stainless steel
  • Back panel: aluminum
  • EMC Emission: EN55022(B)
  • Size: 107x134 mm
  • Compatible with systems: All Windows, Linux, Ubuntu, Android
  • 38.0mm diameter mechanical, Optical, Laser trackball optional upon request
  • The touchpad interface is optional with USB, PS2 or Y cable
  • CE, FCC, ROHS, IP65



Industrial Touchpad Data Sheet:

Front panel material: S304 stainless steel
Keys material:  S304 stainless steel
Back panel material: industrial aluminum
Keys: 2
Power supply: DC5V±5%
Working current: <150mA
Resolution: Above 800DPI
Operation force: <2N
Durability: ≥3 Million
Touchpad Overall Size: 107*134mm
Operation temperature: -10℃ ~ 55℃
Storage temperature:  -30℃ ~ 85℃
Size: 107 x 134mm (front panel)
Compatible with systems: All Windows, Linux, Ubuntu, Android
MTBF: >50000H
MTTR: <30min
Interface: USB, PS2 or Y cable
Approval: CE, FCC, ROHS, IP65
Trackball: Optional
Color:  standard original stainless steel or the black titanium



Industrial Touchpad Pointing Device Applications:

This vandal prood, dust proof, water proof professional industrial touchpad is ideal for:

  • kiosk
  • vending machine
  • control terminal
  • industrial equirement
  • automation plant
  • CNC
  • library


Industrial Touchpad FAQs:

1. Where to buy the touchpad pointing device?

Please email or call us with your detailed request, and then we will make the professional suggestions.

Customers can buy directly from us or from our distributors.



2. How to make the industrial touchpad delivery?

For the small quantity touchpads, usually delivery by express courier like DHL, FedEx with door-to-door service

For the big quantity touchpads, usually by LCL sea shipping or air shipping.



3. What is the warranty for the industrial touchpad?

Standard 1-year, but the touchpad warranty can be exteneded with extra cost.



4. Is it possible to make the customs touchpad size?

Yes, please email us your detailed touchpad request with detailed desgin and files.



5. What is the lead-time for the industrial touchpad?

For the small quantity, usually no more than 1 week.

For the quantity 50pcs, usually 1-2 weeks.
