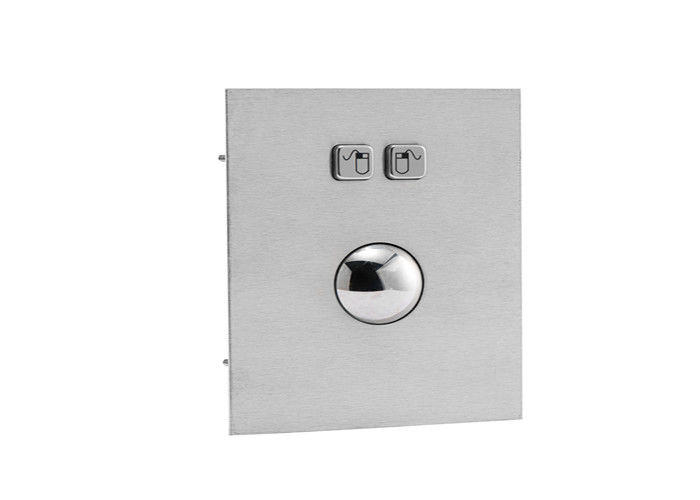

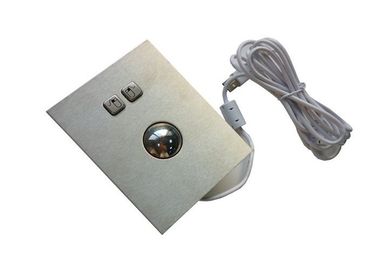

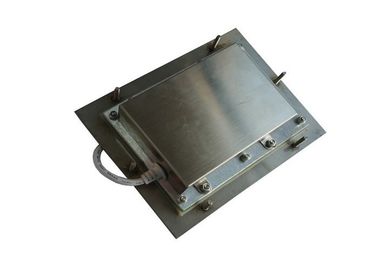

Front Panel Mount Industry Trackball Cursor Control With Threaded Studs

Front Panel Mount Industry Trackball Cursor Control With Threaded Studs
Front Panel Mount Industry Trackball Cursor Control With Threaded Studs

Large Image :  Front Panel Mount Industry Trackball Cursor Control With Threaded Studs

Product Details:

Place of Origin: Made in China
Brand Name: PAC
Certification: CE, FCC, ROHS
Model Number: P-107TB

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Inner box plus outer carton
Delivery Time: 1-2 weeks
Payment Terms: TT, PayPal, Western Union
Supply Ability: 3000pcs per month
Detailed Product Description
Mount: Front Panel Mount Material: Stainless Steel
Industrial: Yes Mouse Buttons: 2
Interface: USB, PS2 Y Cable: Available
High Light:

bluetooth trackball mouse


small trackball mouse

Front Panel Mount Industry Trackball Mouse Pointing Device With Threaded Studs
Flush Mount Trackball Features:

  • IP65 front panel mount stainless steel tracker ball with diameter roller ball
  • Vandal proof tracker ball
  • USB, PS2, or Y cable both with USB and PS2
  • Mounting kit and desktop kit optional
  • The trackball is approval with CE, FCC, ROHS standards.
  • Black titanium optional
  • Black harden resin ball is optional,
  • The mechanical trackball and the laser trackball is optional
  • Carrier plate: Brushed stainless steel
  • Ball material: Stainless steel or black harden resin ball
  • Push button switches use gold plated contact material
  • Durability: ≥ 2Million operations
  • EMC Emission: EN55022(B)
  • Net Weight:0.4kg / 1.0lbs
  • Dimension: 107x134 mm (front panel)
  • Overall size: 107x134 mm

Trackball Data Sheet:

Color: Original stainless steel color or black optional
Front panel material: S304 stainless steel
Three keys material: S304 stainless steel
Back panel material: industrial aluminum
Keys:  2 buttons for right and left mouse click
Power supply: DC5V±5%
Working current: <150mA
Interface: USB, PS2, or Y cable
Operation force: <2N
Durability: ≥2 Million
Trackball Size:
Operation temperature: -10℃ ~ 55℃
Storage temperature: -30℃ ~ 85℃
Compatible with operation systems: All Windows, Linux, Ubuntu, Android systems etc.

Industrial Trackball Applications:
The industrial trackball with two or three mouse buttons, is high quality brushed stainless steel trackball system.
It is the perfect choice for applications to be used in situations where the risk of vandalism,
physical damage or theft is more pronounced than usual:

information or internet stands
points of sale
vending machine
control terminal
industrial equipment
music control panel
Other industrial fields

Cursor Control FAQs:
Q1. Where to buy the industrial CURSOR CONTROL pointing device?
Please email or call us with your detailed request, and then we will make the professional suggestions.
Customers can buy directly from us or from our distributors.
Q2. How to deliver the cursor control trackball pointing device?
For the small quantity trackballs, usually delivery by express courier like DHL, UPS, FedEx with door-to-door service
For the big quantity trackballs, usually by LCL sea shipping or air shipping.
Q3. What is the warranty for the trackbal pointing devicel?
Standard 1-year, but the trackball warranty can be exteneded with extra cost.
Q4. Is it possible to make the customs trackball size?
Yes, it is possible, please email us your detailed trackball request.
Q5. What is the term of the quotation please?
Our quotation is standard by EXW.
We can help our customers to arrange the shipping with prepaid shipping.
Alternatively the customers can aslo use their own express count or their appointed shipping agent for freight collect.
Q6. What is the lead-time for the trackball pointing device?
The lead-time is as soon as possible 1 week for the small quantity under 10 units.
Sometimes we have the small stock for the samples.
The lead-time is as soon as possible 2 weeks for the quantity around 50 units.
