Product Details:
Payment & Shipping Terms:
|
| Language: | Any | Braille: | Optional |
|---|---|---|---|
| Mount: | Panel Mount | Trackball: | Built-in |
| Touchpad: | Optional | Application: | Kiosk Or Other Industry |
| Key: | 67 | Silicone: | For Sealing |
| High Light: | all in one keyboard,cherry trackball keyboard |
||

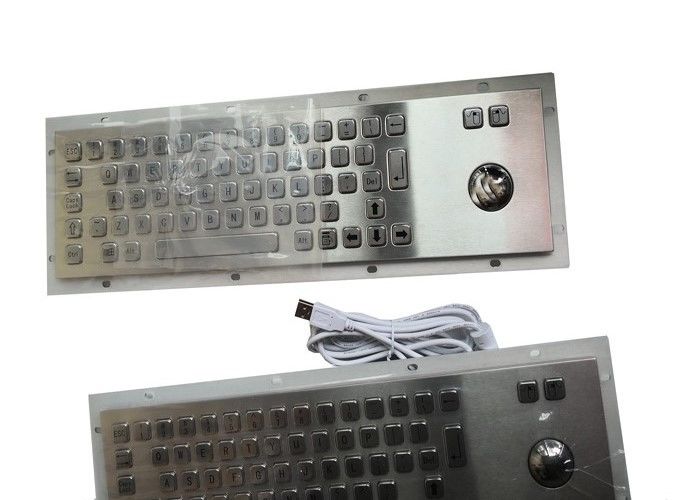

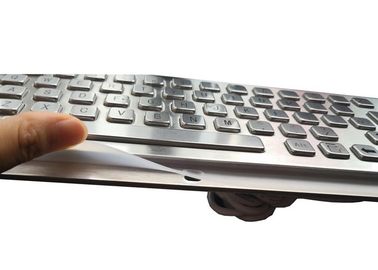

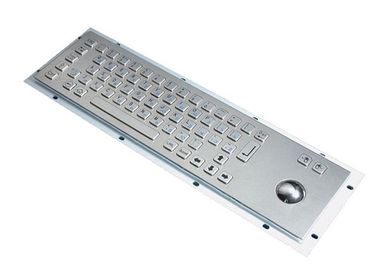

Industrial Panel Mount Keyboard With Trackball Mouse And 67 Key
Trackball Keyboard Features:
1. 67 key Braille dots EMC keyboard with 38.mm optical trackball,
2. The keyboard is with rear panel mount solution
3. With touchpad keyboard optional
4. The keyboard is with S304 stainless steel for the front panel and the buttons
5. With USB or PS2 interface, plug and play, no need driver
6. Customized function keys or combination keys upon request
7. Different language layout is available, please see below table
8. With high quality black titanium optional upon reqeust
9. IP65 grade trackball keyboard for harsh outdoor application
10. Keyboard front panel size 392 x 110mm
11. With the customs industrial keyboard size optional upon request
12. PN: P-392TB data sheet download: P-392TB data sheet.pdf
Keyboard Mechanical & Electrical Data:
| Trackball Size: | 38.mm trackball |
| Power Supply: | DC5V±5% |
| Working Current: | <150mA |
| Interface: | USB or PS2 Interface with standard 2.5m cable, or the customs length like 2.0m or 1m |
| Button Size: | 14x14x4.5mm, 14x28*x4.5mm, 14x100x4.5mm |
| Key Operation Force: | 280g±20g |
| Durability: | ≥5 Million |
| Keyboard Front Panel: | 392x110mm or it is possible to make the customs size |
| Operation Temperature: | -10℃~55℃ (Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa) |
| Storage Temperature: | -30℃~85℃ (Relative humidity5%~90%/ Atmospheric pressure60~106Kpa) |
| Supporting Systems: | Window XP, Window 7, Window 8, Linux, Ubuntu, Android etc. |
Trackball Keyboard Layout Options:
| German industrial keyboard | Italian industrial keyboard | Spanish industrial keyboard |
| French industrial keyboard | Nordic industrial keyboard | UK industrial keyboard |
| Russian industrial keyboard | Hebrew industrial keyboard | Korean industrial keyboard |
| Japanese industrial keyboard | Abraian industrial keyboard | Thai industrial keyboard etc. |
Metal Keyboard With Trackball Application:
