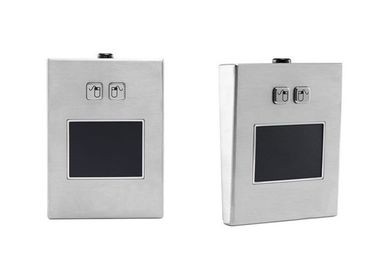

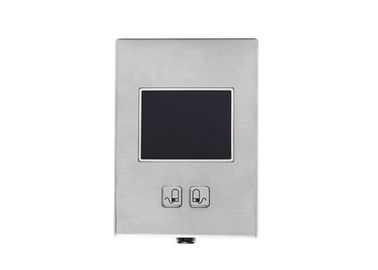

Portable Touchpad Pointing Device 2.0mm Key Distance Travel 304 Stainless Steel Keys

Portable Touchpad Pointing Device 2.0mm Key Distance Travel 304 Stainless Steel Keys
Portable Touchpad Pointing Device 2.0mm Key Distance Travel 304 Stainless Steel Keys Portable Touchpad Pointing Device 2.0mm Key Distance Travel 304 Stainless Steel Keys

Large Image :  Portable Touchpad Pointing Device 2.0mm Key Distance Travel 304 Stainless Steel Keys

Product Details:

Place of Origin: Made in China
Brand Name: PAC
Certification: CE, FCC, ROHS
Model Number: P-107TP-DT

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Inner box plus outer carton
Delivery Time: 1-2 weeks
Payment Terms: TT, PayPal, Western Union
Supply Ability: 3000pcs per month
Detailed Product Description
Mount: Panel Mount PS2: Yes, Or USB
Mouse: Touchpad Buttons: 2
Material: Stainless Steel Application: Industrial
High Light:

usb touchpad mouse

,

laptop pointing device

Portable Touchpad Pointing Device 2.0mm Key Distance Travel 304 Stainless Steel Keys



Touchpad Pointing Device Description:

IP67 dynamic Sealed and Ruggedized Tough Touchpad for fast and accurate cursor position, with 2 raised IP65 dynamic sealed stainless steel mouse buttons under touchpad, the electronics controller module shielded and protected with stainless steel housing, with mounting holes along the rear panel mounting aluminum plate for rear panel mounting.one complete silicone rubber alone the rear stainless steel plate for easy mounting & sealing tightly with cabinet.

Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.



Rugged Touchpad Features:

  • 38.0mm diameter mechanical, Optical, Laser trackball optional upon request
  • The touchpad interface is optional with USB, PS2 or Y cable
  • Vandal proof stainless steel desk mount touchpad pointing device
  • IP65 water proof, dust proof for industrial application
  • Portable touchpad with desk top
  • With 2 raised buttons, 2.0mm key distance travel
  • With above 800DPI
  • Front Panel: 304 stainless steel
  • Keys: 304 stainless steel
  • Back panel: aluminum
  • EMC Emission: EN55022(B)
  • Size: 100x134 mm
  • Compatible with systems: All Windows, Linux, Ubuntu, Android
  • CE, FCC, ROHS, IP65



Industrial Touchpad Data Sheet:

Front panel material: S304 stainless steel
Keys material:  S304 stainless steel
Back panel material: industrial aluminum
Keys: 2
Power supply: DC5V±5%
Working current: <150mA
Resolution: Above 800DPI
Operation force: <2N
Durability: ≥3 Million
Touchpad Overall Size: 107*134mm
Operation temperature: -10℃ ~ 55℃
Storage temperature:  -30℃ ~ 85℃
Compatible with systems: All Windows, Linux, Ubuntu, Android
MTBF: >50000H
MTTR: <30min
Interface: USB, PS2 or Y cable
Approval: CE, FCC, ROHS, IP65
Trackball: Optional
Color:  standard original stainless steel or the black titanium



Industrial Touchpad Pointing Device Applications:

This vandal prood, dust proof, water proof professional industrial touchpad is ideal for:

  • kiosk
  • vending machine
  • control terminal
  • industrial equirement
  • automation plant
  • CNC
  • library


Industrial Touchpad FAQs:

1. Where to buy the touchpad / trackball pointing device?

Please email or call us with your detailed request, and then we will make the professional suggestions.

Customers can buy directly from us or from our distributors.



2. How to make the industrial touchpad / trackball delivery?

For the small quantity touchpads, usually delivery by express courier like DHL, FedEx with door-to-door service

For the big quantity touchpads, usually by LCL sea shipping or air shipping.



3. What is the warranty for the industrial touchpad / trackball?

Standard 1-year, but the touchpad warranty can be exteneded with extra cost.



4. Is it possible to make the customs touchpad size?

Yes, please email us your detailed touchpad request with detailed desgin and files.



5. What is the lead-time for the industrial touchpad?

For the small quantity, usually no more than 1 week.

For the quantity 50pcs, usually 1-2 weeks.
